TWI Analyzer Settings

Specific settings for TWI data analysis are controlled from this dialog: The various fields are:

SDA

the channel supplying the serial data signal.

SCL

the channel supplying the serial clock signal.

Control Buttons

OK

accepts the TWI analysis settings.

Cancel

throws away the values entered with no further action.

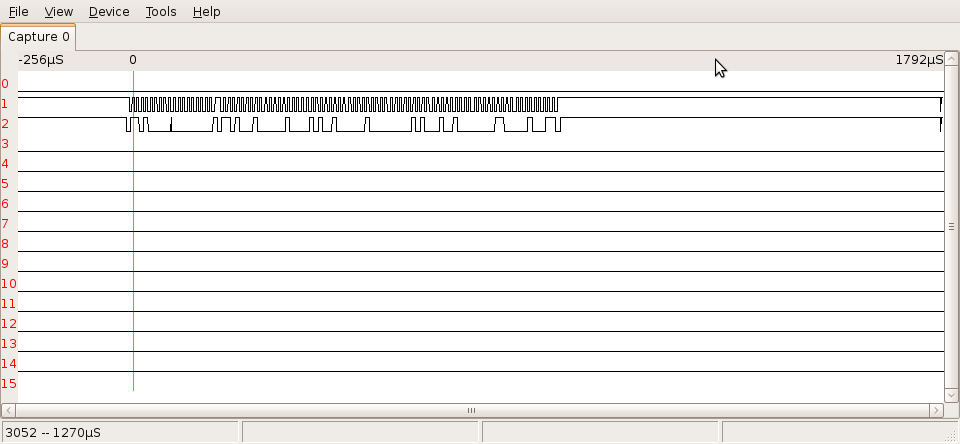

TWI Data Analysis

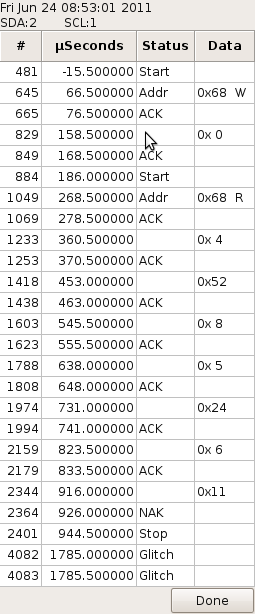

The analysis is displayed in a separate window as a multi-column table. The sample number and time from the trigger are displayed in the first two columns. The third column shows the status changes in the signal. The data byte value is shown in the last column.
