UART Analyzer Settings

Specific settings for UART data analysis are controlled from this dialog: The various fields are:

Pin

the channel supplying the data signal.

Auto

check to have the analyzer estimate Baud rate, Parity, data Length and Stop bits from the captured samples.

Baud

specify the baud rate for the data to analyze.

Parity

specify the character parity in the data to analyze.

Length

specify the bits-per-character in the data to analyze.

Stop

specify that the data to analyze has 1 or 2 stop bits per character.

Control Buttons

OK

accepts the UART analysis settings.

Cancel

throws away the values entered with no further action.

UART Data Analysis

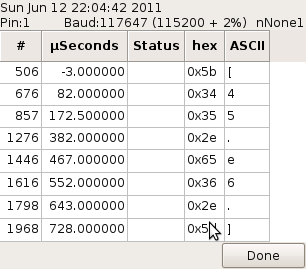

The analysis is displayed in a separate window as a multi-column table. The sample number and time from the trigger are displayed in the first two columns. Each data byte is shown in hexadecimal and ASCII form in the last two columns.
